Car-O-Liner has announced that the CTR 9 Resistance Spot Welder has received a global Volkswagen approval.

“Volkswagen recognises that the high performance CTR 9 welder meets their requirements for high-quality repairs of their modern, technologically advanced vehicles,” says Jonny Jangdin, product manager at Car-O-Liner.

What’s so special about the VAS 6755A?

In order to achieve this approval, the Car-O-Liner CTR 9 welder went through a series of dedicated welding tests performed by an independent third party welding institute to ensure the welder met the high quality welding requirements set by Volkswagen. On top of that, it was determined that for Volkswagen the VAS 6755A fully automatic resistance spot welder is delivered with the special Volkswagen 16A welding cap, Volkswagen-specific software and the new Shelf and Clip Kit and Dust Cover — all as standard equipment.

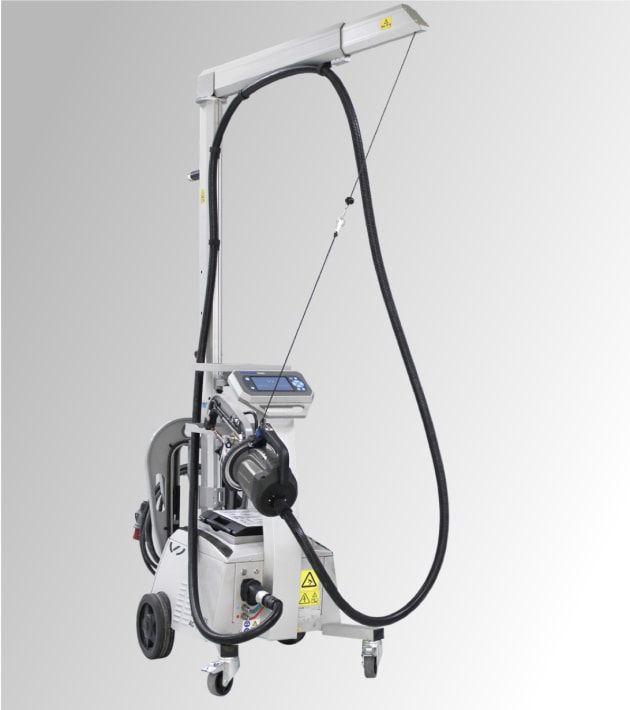

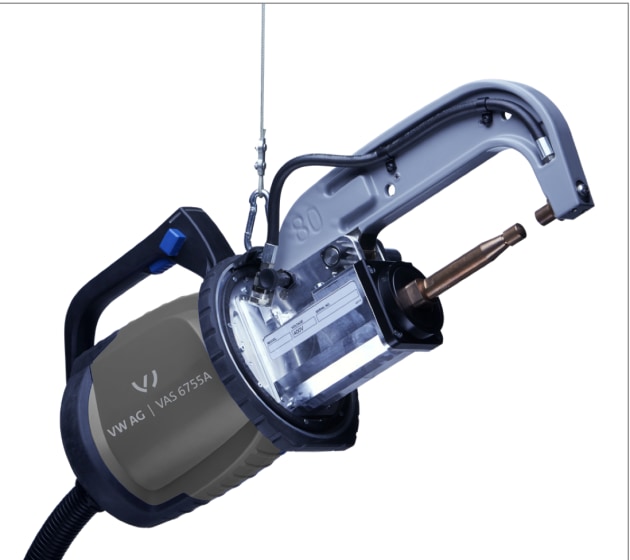

The telescopic support arm is designed to ensure maximum freedom of movement (from 1.9 to 2.4m). Made of robust yet lightweight extruded aluminum, it is easy to adjust both vertically and horizontally for an optimum working position. The arm supports the revolutionised lightweight transformer C-yoke. The C-yoke’s 355° double rotating handle with ergo-grip enables perfect working positions for any technician. Made of reinforced fiberglass, the transformer c-yoke is designed for fast-paced activity. Robust, yet among the lightest on the market, technicians are able to work efficiently with minimal body strain.

The exclusive control panel with 7” color display is ntuitive and easy to use  and is equipped with VW-approved software which automatically establishes required settings to ensure the proper weld nugget, giving fast paced accuracy with every welding spot.

Providing welding currents up to 16,000 A, the VAS 6755A’s robust and compact power unit, with its solid, high strength steel bottom plate, features a low center of gravity for superior stability and increased mobility. Using CANBUS communication VAS6755A instantly measures the metal panels and calculates the exact amount of time, current and clamping force needed for a perfect, Volkswagen approved, quality weld.

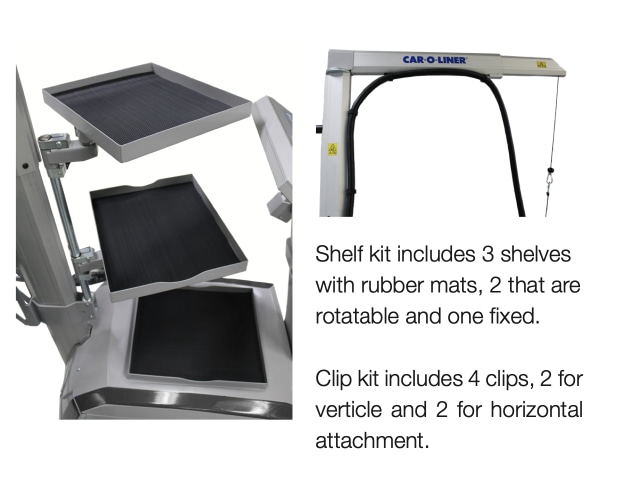

The shelf and clip kit adds versatility to the welder. The three shelves provide a great space to place consumables and equipment. Two shelves swing from side to side giving ease of access and are height adjustable to achieve optimal working conditions. Four clips keep the hose in place, out of the way increasing technician safety, a high priority at Volkswagen.

Other approved equipment from Car-O-Liner: alignment and measuring systems VAS 6528, VAS 6527, VAS 6526 and VAS 6526/22, welders VAS 1959A, and VAS 2001C plus EVO and Workshop Solutions.
